Advanced Automatic Three Knife Trimmer Machine High Prcision

DONGGUAN MAUFUNG MACHINERY CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

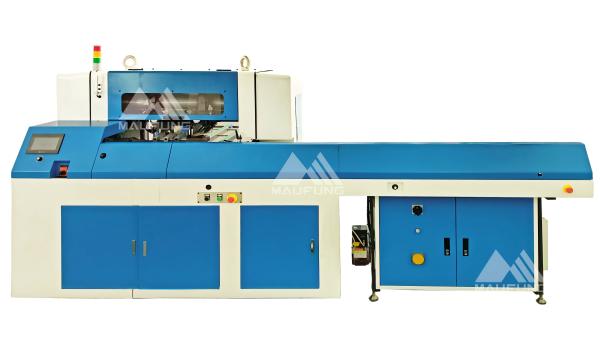

Advanced Automatic Three Knife Trimmer Machine High Prcision

Brand Name : MAUFUNG

Model Number : MF-ATT100S

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T,

Delivery Time : 7-15 days

Model : MF-ATT100S

Max untrimmed Size : 385*310mm

Min untrimmed Size : 115*95mm

Max. Cutting Height( mm) : 100mm

Max Finished Size : 380*300mm

Min Finished Size : 140*90mm

Min Single Cutting Height : 3mm

Cutting Speed : 15-50 times/m

Power : 6.1KW

Overall Dimension (L*w*H/mm) : 3600*2430*1750mm

Machine weight (Kg) : N.W3800

Contact Now

Description:

Adopts Janpanese keyance PLC control system,frequency conversion speed regulation,human-computerinteractiveoperation inferface,scalable dockingISM system.

The fuselage is integrated and completely cast,the structure is strong in steel,and the German pentahedronmachining center

isprocessed and molded at one time to ensure high prcision.

It adopts a double-strengthened brake mechanism,which can safety brake at high speed and power failure to ensure safety.

The automatic height adjustment function of the book makes the conversion easier and faster.

Quick tooling design,you can easily change the blade without tools.

Configure 8 overall movable knife boards to ensure full-size coverage.

Adopts double-side edge silicone lubrication device,the cutting surface is smooth and smooth-automatic oil supply

lubrication.Fully enclosed protection,safe and low-noise optional devices:anti-break devices can be purchased and installed as needed

Advanced Automatic Three Knife Trimmer Machine High Prcision

Parameters:

Model MF-ATT100S
Max untrimmed Size 385*310mm
Min untrimmed Size 115*95mm
Max. Cutting Height 100mm
Max Finished Size 380*300mm
Min Finished Size 140*90mm
Min Single Cutting Height 3mm
Cutting Speed 15-50 times/m
Power (KW) 6.1
Overall Dimension (L*w*H/mm) 3600*2430*1750mm
Machine weight (Kg) N.W3800

About Us:

Based on Dongguan city, Guangdong Province, we Dongguan Maufung Machinery is a manufacturer specializing in book post press binding machines and rigid box making machines. We mainly produce Photo Book Lay Flat Machine, Book Block Head Band Machine, Semi Auto Case Maker, Hard Cover Book Case In Machine, Joint Forming Machine, Book Block Rounding Machine, Elastic Band Inserting Machine, Double Round Corner Cutting Machine, Wire Book Binding Machines, Rigid Box Making machines,etc.

We have a large number of professional machinery technical engineers devoting in improving the machinery production technique. On constantly upgrading product quality and after-sales service, we also focus on self-developing adhering to “People-oriented Principle, Quality for Survival Strategy, Credibility for Development Strategy” and “Rooting in Quality, Developing via Brand” strategy. We offer thoughtful after-sale service including installation, adjustment and maintenance service for the machine. First-class production equipments, first-class technical force, first-class quality and first-class service make us win the trust from numerous companies at home and abroad.

Advanced Automatic Three Knife Trimmer Machine High Prcision

Professional before-sale and after-sale service

■ We have professional sales people and technicians, who are serving you serve with their expertise and exquisite skills.
■ We have exported machines to more than 100 countries, and established well-developed service system and network.

■ All Machines enjoy one year free warranty.

■ Easy operation of machines and strict control in quality makes the after-sale very simple.
■ Professional and efficient maintenance service, and prompt & accurate feedback make sure that you will enjoy a high quality and consistent care from us.

FAQ:

1. What is machine warranty?

--- one year FREE warranty, whole life technique support.

2. Are you a manufacturer?

--- Yes, we are a manufacturer located in Dongguan City.

3. Is engineer installation service available?

--- Yes, we provide online technique support and also engineer installation service.

4. How about after-sales service process?

--- When your machine has problem, contact us and we will assist you immediately .

5. Does your machine have CE certificate?

--- Yes.

6. What is the production time after placing order?

--- Around 7-30 day

7. Does the packing strong?

---- Yes, of course! All of our export packing is with strong wooden case, all are confirm to export packing standard.

8. Do you inspect machines before delivery?

---- Yes, we will test machine by our QC department before delivery.
